Hybrid Combo Dual Frequency Contactless Rfid Smart Card

Categories

Modern many applications often need multiple chips of different frequency to be contained within a single card. The manufacturing challenge is to laminate the chips and antennas in such a way that RF signals will not interfere with one another while still

INQUIRY NOW

Description:
Modern applications often need multiple chips of different frequency to be contained within a single card. The manufacturing challenge is to laminate the chips and antennas in such a way that RF signals will not interfere with one another while still maintaining minimal chip and antenna blemish. Main Include:LF+HF,HF+UHF,LF+UHF,LF+HF+UHF,etc.

Specification:

Product name	Hybrid Combo Dual Frequency Contactless Rfid Smart Card
Material	White PVC/ Black PVC/ ABS/ PET
Size	CR80 85.5X54mm (3.375*2.125 inch) Thickness: 0.9mm/ Customized
Chip	Any LF+HF chips are all availableAny LF+UHF chips are all available Any HF+UHF chips are all available Any LF+HF+UHF chips are all available Any ISO 14443A Chip+ISO 15693 Chip are all available
Surface	Glossy/Matte/ Frosted Surface
Crafts (Option)	Logo printing : Digit printing, offset printing and silk printing Number printed will be available ( Serial No & Chip UID) Chip program/encode will be available as well ( URL ,TEXT ,Number and Vcard) Epoxy, Customize size and shape , Hole punch etc
Application(Based on the system you have)	Ticketing & monetary transactions Turnstiles Vender Loyalty system for promotion -Parking meters -e-Payment Mobile payment, PayPal, Google Wallet, Ticketing, Boarding pass, Point of Sale, Coupons etc. Gaming & toys

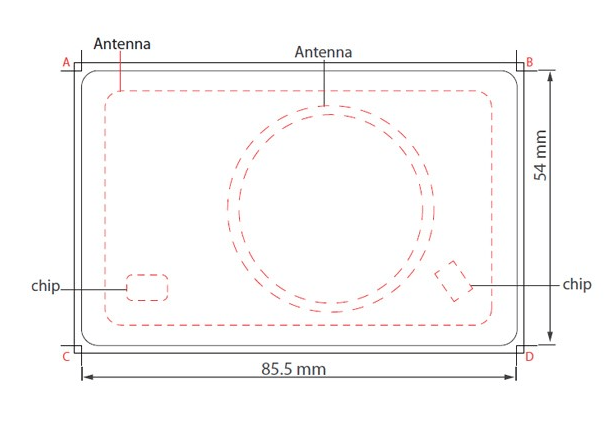

Low Frequency + High Frequency IC:

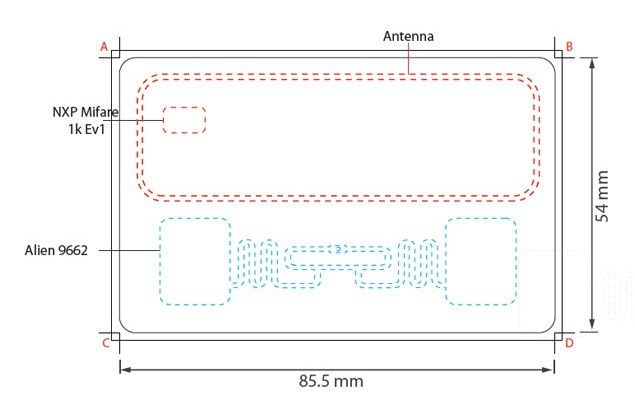

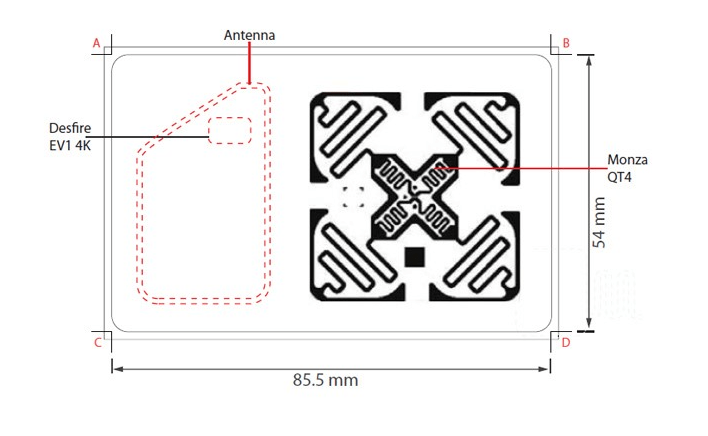

High Frequency + Ultra High Frequency IC:

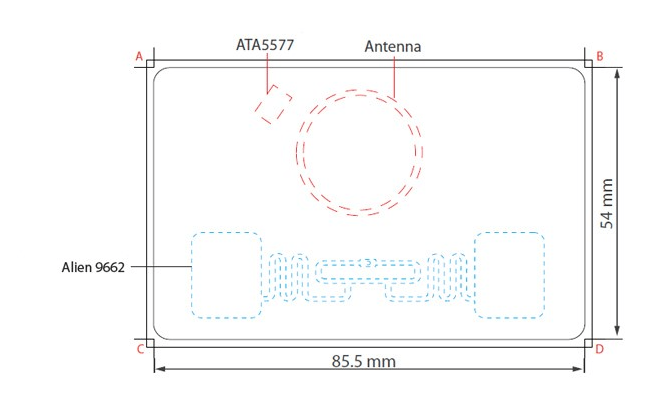

Low Frequency + Ultra High Frequency IC:
