Tamper Proof Rfid Windshield Tag For Parking System

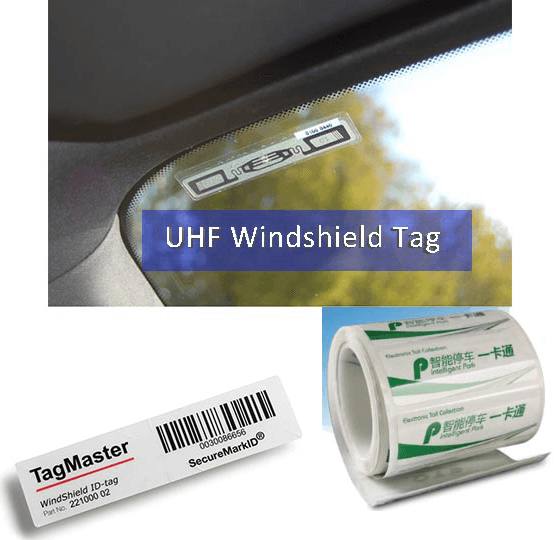

The Tamper Proof windshield tag is designed to be attached to optimization Design of automobile glass. It meets EPC C1 G2 as well as ISO/IEC 18000-6C. It has a unique ID and can store additional information. It can be directly stick to the automobile's
Description
The Tamper Proof  windshield tag is designed to be attached to optimization Design of automobile glass. It meets EPC C1 G2 as well as ISO/IEC 18000-6C. It has a unique ID and can store additional information. It can be directly stick to the automobile's windshield. Mainly applied in vehicle management, vehicle charges, auto glass retail management and so on. Various designs, color are all available to customize. Provide Logo printing according to customer's request.Tamper Proof type is lock the encode data,only has the password can enter.Which can protect the data security.

Tamper Evident  Windshield label is specially designed for quick and reliable Automatic Vehicle Identification (AVI) offering an ideal solution for Parking & Tolling applications.

The passive, battery-free tag is EPC Gen 2 compatible and designed as a thin and flexible label with strategically placed slits to ensure the tag is non-transferrable and cannot be removed without being destroyed.

The tag is optimized for application on glass surfaces of vehicles and offers a read range of up to 12 meters (depending on the reader).


Feature

1. Tamper proof

2. The adhesive is fixed, easy to install

3. A variety of ways and shapes can be packaged as needed

4. High sensitivity and good reading performance

5. Text and logo can be printed

6. Batch use

Specification

 Product:  Tamper Proof UHF RFID windshield tag
 Material:  Paper, PET, PVC
 Size:  110*45*0.3 mm or customized
 Chip:  Alien h3, monza4, monza5, U code gen2 or other
 Frequency:  860-960mhz
 Protocol:  EPC global Class1 Gen2, ISO 18000-6C
 Antenna:  etched aluminum
 Printing: one side logo printing or 2 sides logo printing

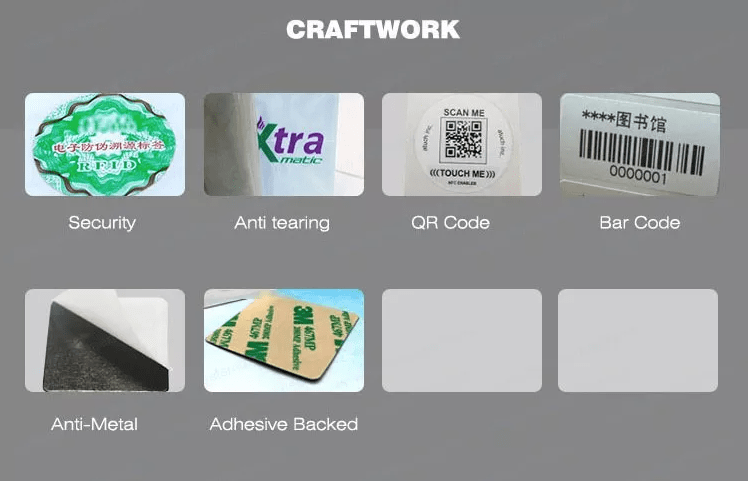

 Crafts:  barcode number printing,tid number printing,QR Code   printing,encode data,etc


Application
- Auto Vehicle Identification (AVI)
- Electronic Toll Collection (ETC)
- Parking & Access Control
- Electronic Vehicle Registration (EVI)
- Vehicle Identification Border Control (VIBC)
- Fleet Management
