125Khz Smart Card Reader

Categories

The 125Khz low-frequency reader can support multiple operating systems: Windows versions of Linux, Android4.0 and above; supported card types: EM4100, TK4001, T5557, T5577 and other compatible cards.

INQUIRY NOW

Description
The 125Khz low-frequency reader can support multiple operating systems: Windows versions of Linux, Android4.0 and above; supported card types: EM4100, TK4001, T5557, T5577 and other compatible cards.

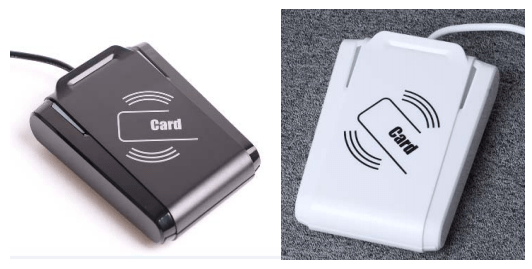

Two colors Show

Specification

Host Interface
Interface	USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)
Power Source	From USB port
Supported Operating Systems			Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above
Contactless Smart Card Interface(125KHz)
Support the card type		Temic 5567/5577 read/write, TK4100 read only
Operating Distance		Up to 40mm
Built-in Peripherals
Buzzer		Monotone
LED Status Indicators		2 LED (green, blue)
Physical Specifications
Dimensions		125mm (L) x 95mm (W) x 28mm (H)
Weight		180g
Operating Conditions
Temperature		-10°C – 60°C
Humidity		10% to 90%, non-condensing
