ICODE SLIX Printable 13.56MHz RFID Library Tag

Categories

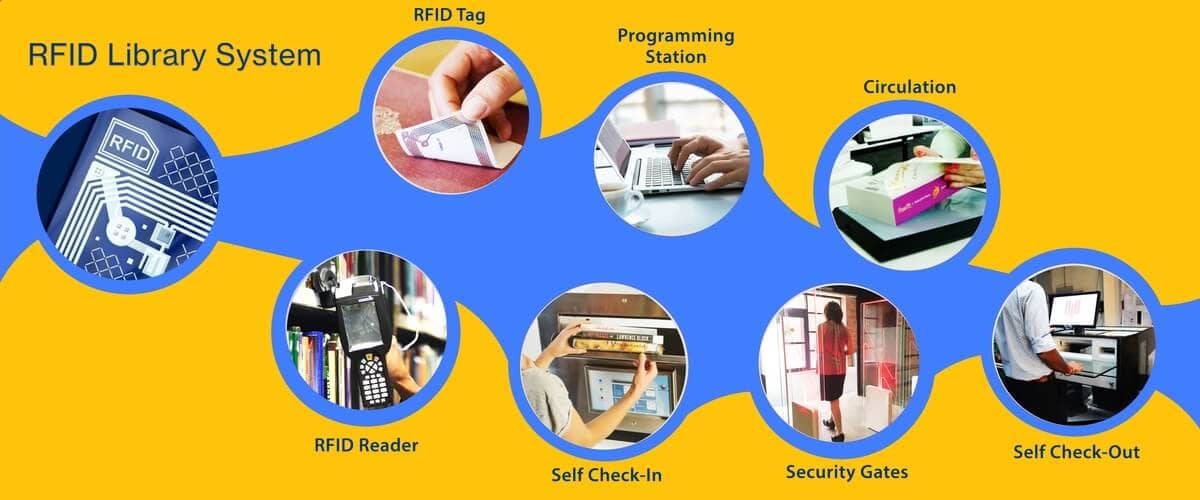

RFID library tags can store identifying information such as a book's title or material and easily stick to the book. They are like a tentacle or location tracker, allowing librarians or readers to quickly find the books through the RFID system.

INQUIRY NOW

Description
RFID library tags can store identifying information such as a book's title or material and easily stick to the book. They are like a tentacle or location tracker, allowing librarians or readers to quickly find the books through the RFID system.It is mainly used by librarians to encoding book information into RFID tags for label data conversion processing. It can also identify and process the circulation status of books with RFID tags. Used to manage book information in RFID tags.

Specification

1.Item:	ICODE SLIX Printable 13.56MHz RFID Library Tag
2.Chip:	ICODE® SLIX
2.Chip:	ICODE® SLIX
3.Tag Size:	50mm*50mm or customize
4.Antenna Size:	45mm*45mm
5.Surface:	Blank white or printable
6.Reading Range:	6cm-10cm depend on reader and tag size
7.Substrate:	PET
8.Surface material:	PET / Paper / PVC
9.Antenna Process:	Aluminum ETCH(AL10um)
10.Memory:	UID, 64bit user memory, 896bit
11.Protocol:	ISO 18000-3M1, ISO15693
12.Operating Frequency:	13.56MHz
13.Working Mode:	Passive
14.Write Cycles:	100000 times
15.Operating Limits:	-70℃/ 20%~90% RH.
16.Storage Limits:	-20~50℃ / 20%~90% RH(Without condensation).
17.Application:	Library management, Membership management, Access Control System supermarket, Fund management, CD/DVD management
18.Inlay Format:	in roll
19.Delivery Format:	2000-5000pcs/roll, 4 rolls /carton
