Assets Management Anti metal RFID 13.56MHz Disc Tag

Categories

RFID Partol Tag is laminated with PVC or ABS, water-proof tag. The tag could be with adhesive back, this RFID tag could be mounted on nonmetallic surface. And because of our Direct Bonding technology the surface would more flatter that could have great pr

INQUIRY NOW

Description
RFID Partol Tag is laminated with PVC or ABS, water-proof tag. The tag could be with adhesive back, this RFID tag could be mounted on nonmetallic surface. And because of our Direct Bonding technology the surface would more flatter that could have great printing performance. Silk screen and Offset printings are available upon request.The material could be transparent PVC and white PVC ,or ABS.

Specification

1.Product name:	Assets Management Anti metal RFID 13.56MHz Disc Patrol Tag
2.Product Description:	Standard ABS waterproof tags Can customize with pptional features: complete water/ oil proof anti-metal layer * back adhesive
3.Material:	ABS, engineering plastic
4.Installation:	Adhesive paste with strong glue, or screw Can be used on warehouse managerment, property tracking, can be installed on pallet, the cartons, machine etc.

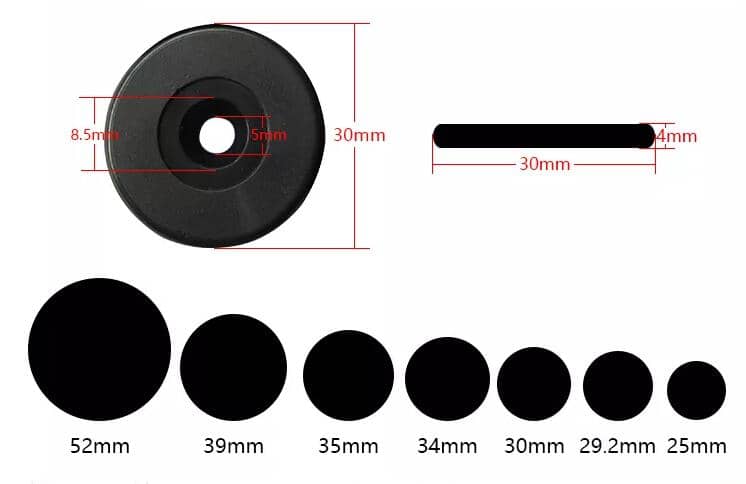

5.Size:	Round shape, normal diameter in 25/30/34/40/52mm Customize size available
6.Chip:	LF: TK4100, EM4100, EM4200, EM4305, T5577 HF: FM11RF08, 1K S50, S70, Ult, sli, N213/215/216, etc UHF: UC G2XL , H3, M4 ,M5, etc
7.Reading distance:	0-6m, according to reader and chip
8.Operating temperature:	-25℃~60℃
9.Customize:	Size and logo
10.Features:	Durable and can work in harsh environment Waterproof, moisture proof, antishock, high temperature resistance,etc (anti-metal optional)
11.Application	Warehouse managerment, property tracking, can be installed on pallet, machine etc.
