Passive UHF PCB Anti-metal Tag for Logistics Transport Container

Categories

UHF PCB Anti-metal tag is a general-purpose UHF anti-metal tag made of PCB material. Its moderate size makes it one of the most widely used labels. The PCB Tag has the characteristics of smooth and flat product surface, no protrusion due to chip packaging

INQUIRY NOW

Description
UHF PCB Anti-metal tag is a general-purpose UHF anti-metal tag made of PCB material. Its moderate size makes it one of the most widely used labels. The PCB Tag has the characteristics of smooth and flat product surface, no protrusion due to chip packaging; long product reading distance; flexible and convenient product installation methods.

Feature
* Universal PCB material UHF anti-metal RFID tag
* Stability-good reading distance performance
* Impermeability-resistant to the influence of alcohol and petroleum
* Reliability-Pass drop test, high and low temperature alternating test, alcohol test, gasoline test and other tests
Specification

1.Frequency:	865-928MHz (please note the country or region when placing an order)
2.Chip type:	M4QT (other chips are available in the same size)
3.Capacity:	128bits EPC + user 512bits
4,standard:	UHF EPC Class 1 Gen 2, ISO 18000-6C
5.Reading distance (on metal):	More than 2 meters (related to the reader and the environment)
6.Read and write performance:	Readable and writable (customers can write content repeatedly into the chip)
7.Data preservation:	50 years
Physical characteristics
8.size and weight:	80 20 3.4mm & 12g
9.Installation method:	adhesive, or screws, rivets, super glue
10.Mounting hole size:	φ3.5mm
11.Can be attached to:	Metal
12.Shell material & color:	FR4 & black
Chemical and mechanical properties
13.waterproof level:	IP63
14.Alcohol and gasoline testing;	95% alcohol, 92# gasoline wipe passed
15.High&low temperature alternating test	-40℃～+85℃100 high and low temperature alternating cycles, a total of 30 consecutive days passed the test
16.Drop test	Passed 200 times drop test at 1 meter height
17.Rapid cooling test	After heating at 185°C for 1.5 hours, put it in 10°C water quickly and accurately. Take it out and pass the function test at room temperature.
18.Operating temperature	-25 degrees ~ +85 degrees
19.storage temperature	-40 degrees ~ +120 degrees
20.Storage humidity	5%～95%
21.Options	Code typing on laser surface, silk screen on the surface, glue on the back, color can be customized
22.Warranty	1 year

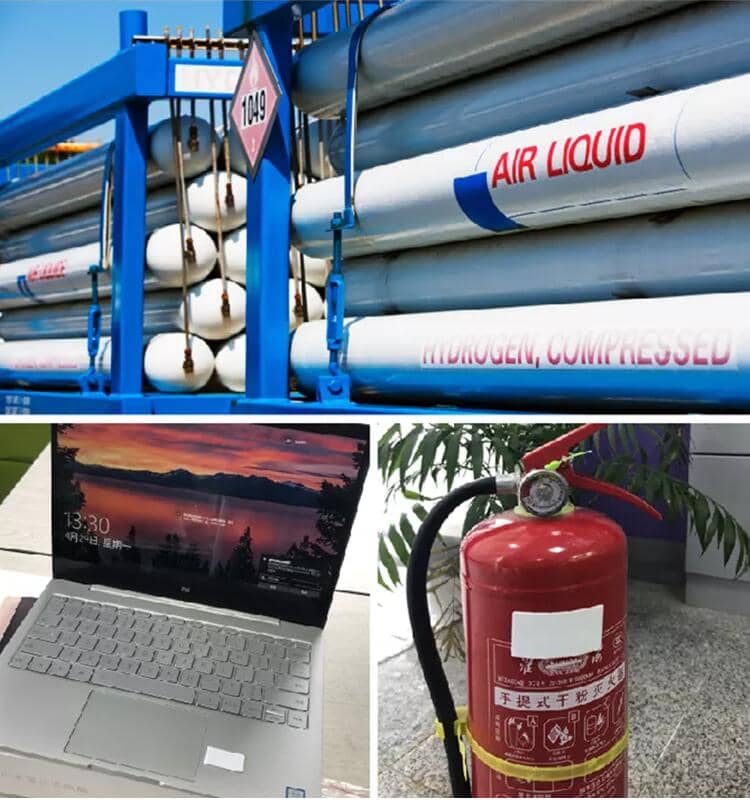

APPLICATION AREAS
1. Storage rack locomotive equipment management;
2. IT facility chassis management;
3. Management of large and medium metal containers;
4. Management of public facilities such as power facilities and street lights;
