Tamperproof / Fragile NFC Tag is designed for anti-counterfeit. It uses fragile materials, such as a fragile antenna, shredded paper, or anti-peeling antenna, to ensure that the tag is not transferable.
Description Tamperproof / Fragile NFC Tag is designed for anti-counterfeit. It uses fragile materials, such as a fragile antenna, shredded paper, or anti-peeling antenna, to ensure that the tag is not transferable.The complete fragile label can be identified by card reader or NFC mobile phone. The damaged label is unreadable or detection status changed, so the authenticity and integrity of the product can be detected at one time. Specification 1.Material：Fragile Paper/PET 2.Size：Antenna: 21*46mm, Tag: 25*51mm 3.Working frequency：13.56MHz 4.Available chips:213 TTTag Tamper,424 DNA Tag Tapmer 5.Tag Tamper feature:detecting if the TagTamper wire is open after startup 6.Operating distance:up to 100 mm

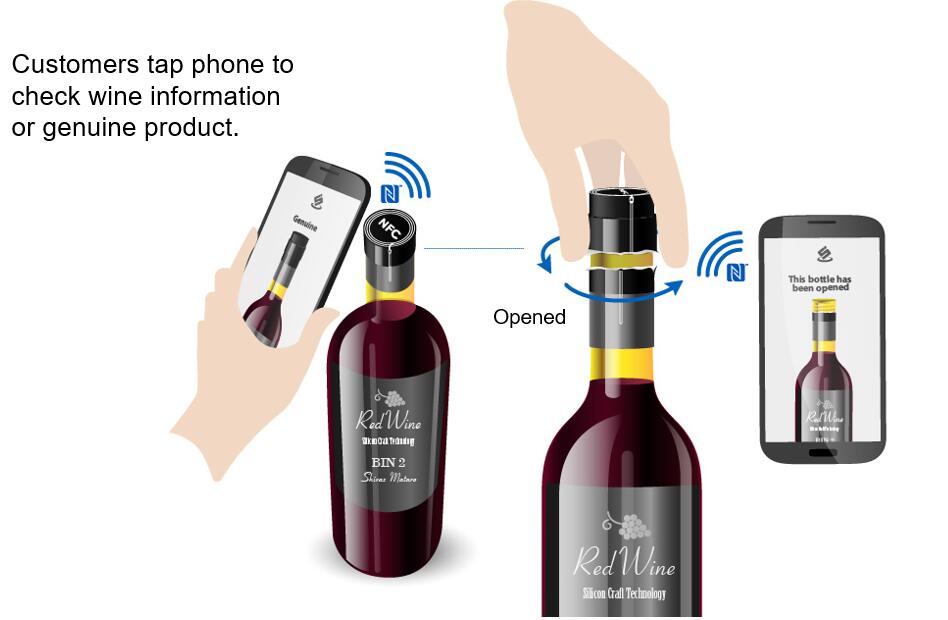

How TAG ( 213 TT TagTamper / 424 DNA TagTamper ) works Typically, the tags are used to detect the opening of the packaging. The antenna structure of tag can be seen as two parts:
1. The main antenna loop to transmit radio waves between the RFID reader and IC chip. 2. The detection loop or detection wire. In case of an open or break of detection wire, the chip permanently stores this change. The information status of the Tag Tamper wire can be mirrored in ASCII code into the user memory and subsequently reported to the cloud.
In addition, 424 DNA TT with AES-128 cryptography. The NFC tag generates a unique NFC authentication message (SUN) by each time it is being tapped with NFC mobile or reader . The unique URL with the SUN authentication message together sends to the host where the authentication take place, and return with the verification. Application

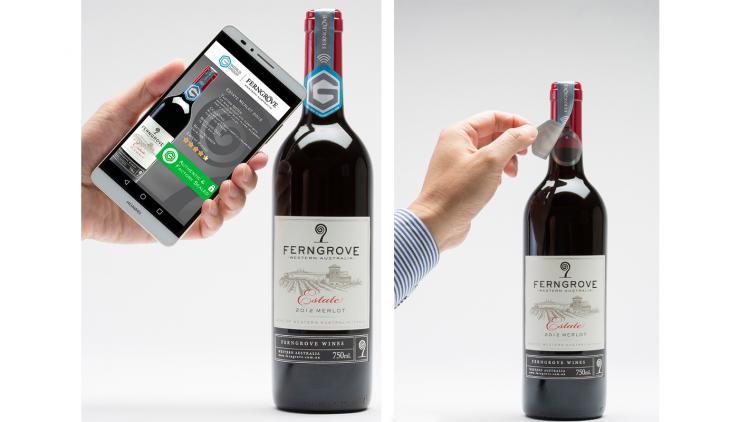

* Advanced anti-counterfeiting ( Product authentication ) Verify authenticity of physical goods and identify sales outside authorized markets * Tamper detection and proof ( Smart packaging ) Detect unauthorized product opening to secure product integrity * Secured exclusive user experiences based on product status Enabled advanced user interactions, pre- and post-sale. Also reward customers with truly exclusive and personalized content, offers and privileges * Secured sensitive data applications Protect sensitive product and user data, or trigger an action upon a verified incidence, e.g., payment * Secure authentication and configuration of closed loop devices Authenticate consumables and parts, enable an integrity check, and automatically transfer device settings
