Ultra Small Size FPC Tags High Temperture Resistence Rfid Tag Custom

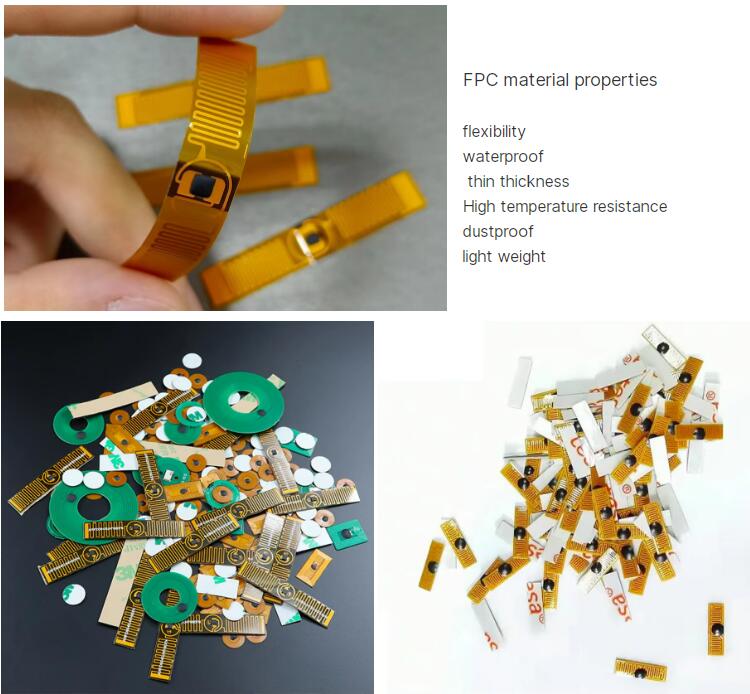

FPCB (or FPC) was named for Flexible Printed Circuit Board. FPC is a patterned arrangement of printed circuits formed by copper etching with a flexible base material of polyester or polyimide. It has high reliability and good flexibility reflect .

The
Description

FPCB (or FPC) was named for Flexible Printed Circuit Board. FPC is a patterned arrangement of printed circuits formed by copper etching with a flexible base material of polyester or polyimide. It has high reliability and good flexibility reflect .The advaNes of FPCB are small size, light weight, dynamic bending, strong signal, high circuit density, and reduced assembly cost.FPCB RFID tag can embed both HF and UHF technology. It is high-temperature resistant so that it can be encapsulated by silicone or plastic.


Specification
Material: FPBC
IC Chip Options: HF, NFC, UHF
Size: HF/NFC : Dia8mm/10mm/12mm , 15X15mm, 6X16mm, 8X12mm, 8x18mm or customize
UHF: 49(L) x 09(W) x 1.02(T) mm / 25(L) x 25(W) x 1.15(T) mm or customize
Adhesive: Yes, optional
Anti-Metal Material: Yes for HF and NFC, optional
Applicable Surface: Metal / Non-metal surface


IC options

HF 13.56Mhz :
- ISO14443A: Ultralight®, Fudan FM11RF08, etc.
- ISO18092: Topaz512, etc.
- ISO15693: NXP SLIX, TI Tag it HF-I, ST LRI, etc.
UHF 860-960Mhz :
- Alien Higgs, Monza 3, Monza 4D, Monza 4QT, Monza R6, Monza R6-P, Impinj M730 ,Impinj M750 etc.
