13.56Mhz RFID Rewritable Keyfob with Keychain

Categories

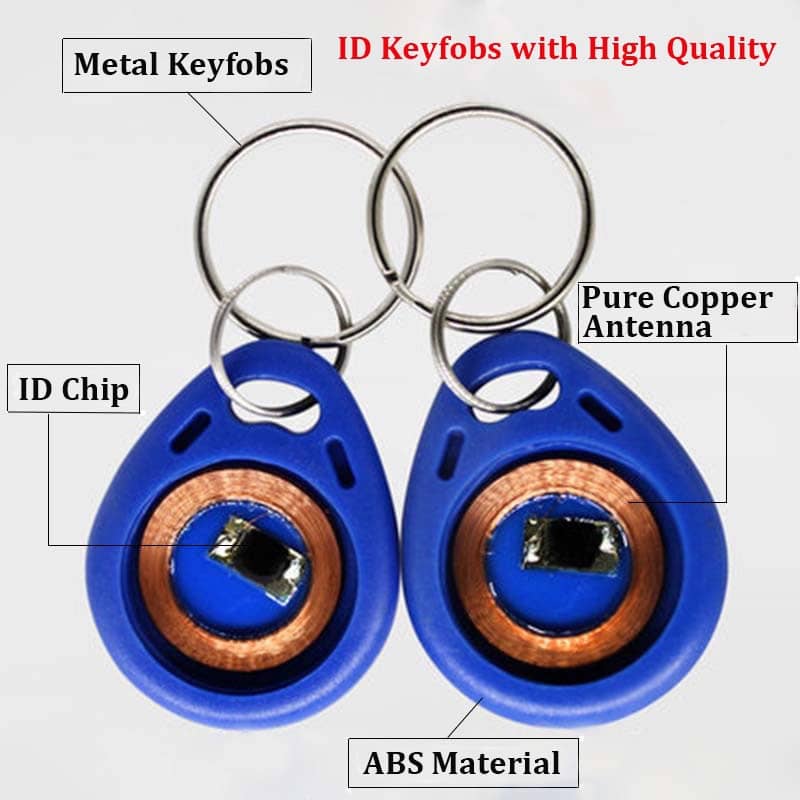

The RFID keychain is made of ABS material and pressed out of the keychain model through a high-quality hardware mold, then the copper wire COB is put into the pressed keychain model, and then closed by ultrasonic waves, it becomes the key we often use in

INQUIRY NOW

Description

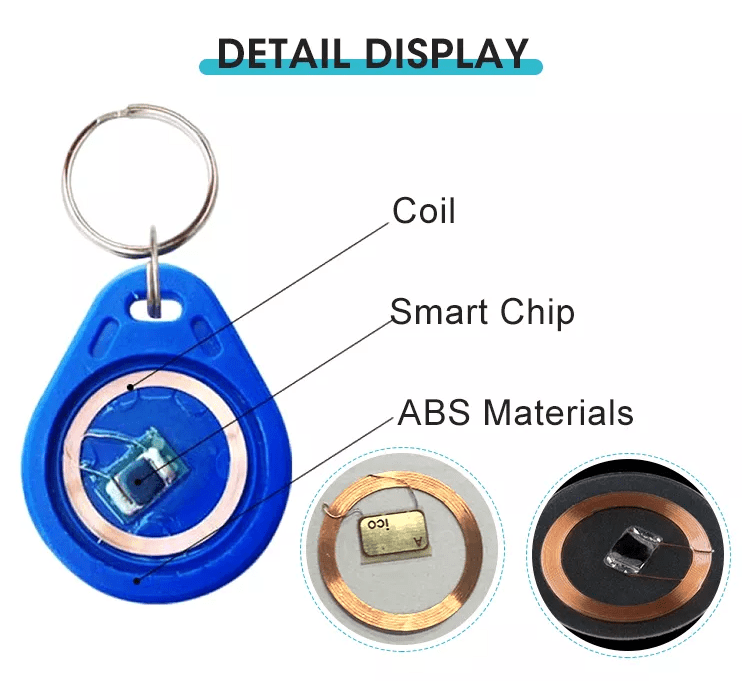

The RFID keychain is made of ABS material and pressed out of the keychain model through a high-quality hardware mold, then the copper wire COB is put into the pressed keychain model, and then closed by ultrasonic waves, it becomes the key we often use in access control. buckle. The keychain is small in size and easy to carry, which is very suitable for application in one-card payment.

Specification

1.Material：	ABS
2.Housing：	ABS, Ultrasonic plastic welding
3.Chips：	TK4100,T5577,em4305;F08,Ntag213/215/216,Ult C/Ult ev1,I code slix,desfire EV1/EV2 2K/4K/8K,etc
4.Frequency：	125Khz/13.56Mhz
5.Reading Range：	1-5cm
6.Applications：	Public Transport; Security and Access Control; Time and ttendance; Membership Management.
7.Resistance：	Common indoor environment
8.Options：	Silk-screen printing Logo Laser mark Logo, Laser mark & Jet dot number printing,UID Or serial number printing,etc

Available 13.56Mhz Chip Details

High Frequency Chips(13.56Mhz)
Protocol ISO/IEC 14443A
1. MIFARE Classic® 1K, MIFARE Classic® EV1 1K, MIFARE Classic® 4K
2. MIFARE Plus® 1K, MIFARE Plus® 2K, MIFARE Plus® 4K
3. MIFARE® DESFire® 2K, MIFARE® DESFire® 4K, MIFARE® DESFire® 8K
4. NTAG® 203 (144 bytes), NTAG® 213 (144 bytes), NTAG® 215 (504 bytes), NTAG® 216(888 bytes)
5. MIFARE Ultralight® (48 bytes), MIFARE Ultralight® EV1 (48 bytes), MIFARE Ultralight® C(148 bytes)
Protocol ISO 15693/ISO 18000-3
1. ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2
Remark: MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license. MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license. MIFARE DESFire are registered trademarks of NXP B.V. and are used under license. MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license. NTAG are registered trademarks of NXP B.V. and are used under license. ICODE are registered trademarks of NXP B.V. and are used under license.

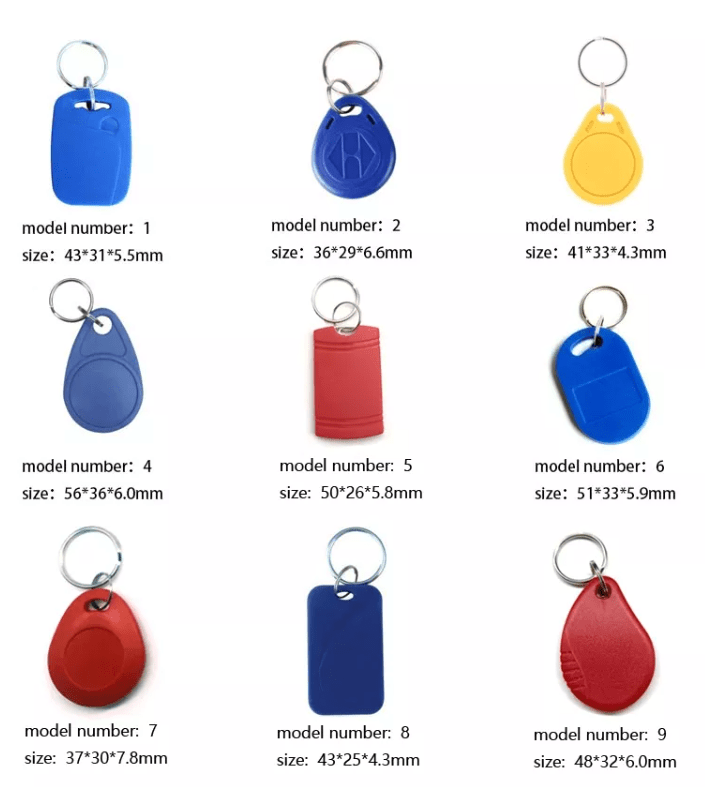

Available Models

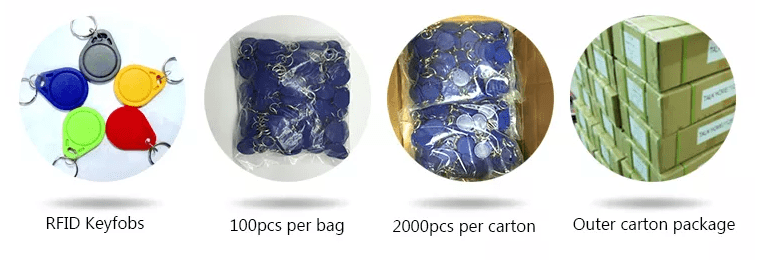

Package
