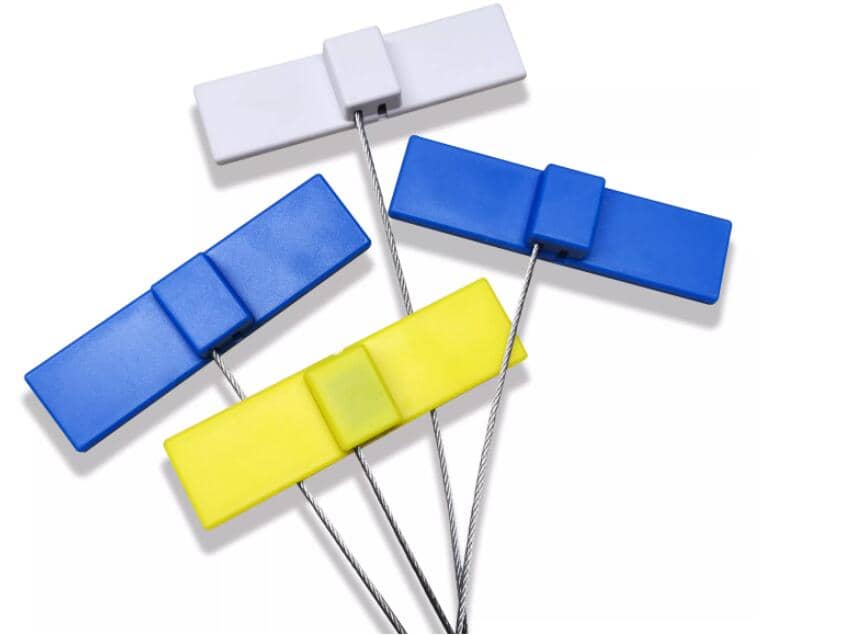

RFID Seal for Container is a high security seal,  working with passive RFID UHF. Each RFID seal has a unique ID Code , and can re-read and re-write, available with tamper evidence built-in capability.  It provides automatic identification of the truck, container or other vehicle which the seal is attach onto.

It not only can automatic identify any container or transport vehicle, but also can timely, easily and reliablility read the integrity status of the seal, by providing information about any taper evidence.

The robust steel cable is 1.7mm of diameter and standard length of 280mm, one side is floating and the othe end is captive. After inserting the keys, the steel length is adjustable as per the objective, and once it is fixed, it will not accidental sliding.



Key Feature

1. Waterproof, drop, anti-collision, can be used outdoors; dustproof and waterproof rating of IP65
2. Can be printed adhesive paper
3. To strengthen the management
4. The label part of the electronic label is in the bundled external position, not bound by the impact of material, stable reading, easy to use, resistant to moisture, high temperature, can be used for harsh environments.
5. The cable tie tag as the data carrier of the object, can through the non-contact space sensor conveniently, and it plays a role of logo identification, item screening, information collection, tracking traceability.

Specification
1.Material:ABS
2.Length of steel core:280mm
3.Chip type:normally UHF chip
4.Frequency: 860-960MHZ
5.Protocol:ISO186000
6.Protection:IP67
7.Operating temperature::-25℃ to +65℃
8.Color:Blue (QTY more than 10000pcs can do customized color)

Application

anti-counterfeiting and confidential use in logistics, shipping, electric power, warehousing, valuables, dangerous goods
management, network wiring, finance, department stores, and petrochemicals.
