DescriptionThe RFID Nail Tag can be nailed into any type of wood, suitable for any kind of pallets, trees and wood; it is rust-resistant in wet and chemical environment. The top side of the nail is filled with epoxy, the nail tag is completely water/dust proof. It is available in 125KHz, 13.56 MHz, and UHF 860-960 MHz.
Nail tags enable RFID tagging of wooden assets and pallets for a variety of construction and transport applications. A durable fiberglass housing protects embedded electronics during installation and use. A standard drill hole allows the HID Global Nail Tag transponder to be mounted into dense materials.
These RFID tags install quickly and securely into wooden pallets and containers, enabling accurate real-time tracking, and supplying organizations the data needed to optimize industrial processes, workflow and inventory management.

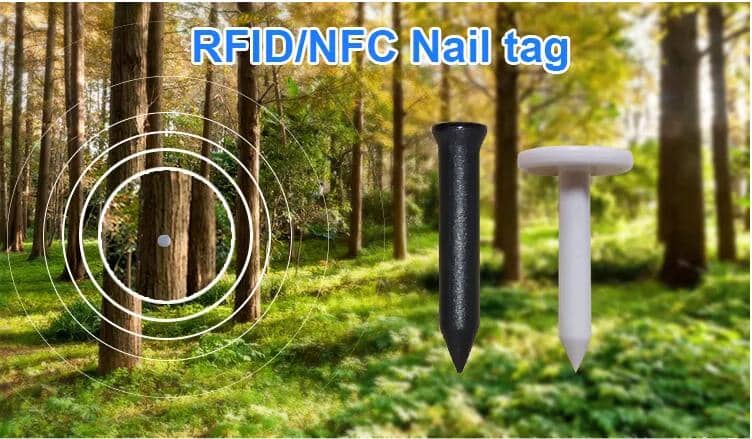

Nail Tag devices are also used in forestry and research applications to tag living trees. Moisture resistance and stable performance across fluctuating temperatures ensure long-term performance.
Features
*UHF Nail Tag is white ABS only; LF/HF both are black ABS;
*Waterproof, Durable, Anti-Collision;
*Life: More than 100,000 times;
*Data Retention Time: 10 years;
*Reading fast;

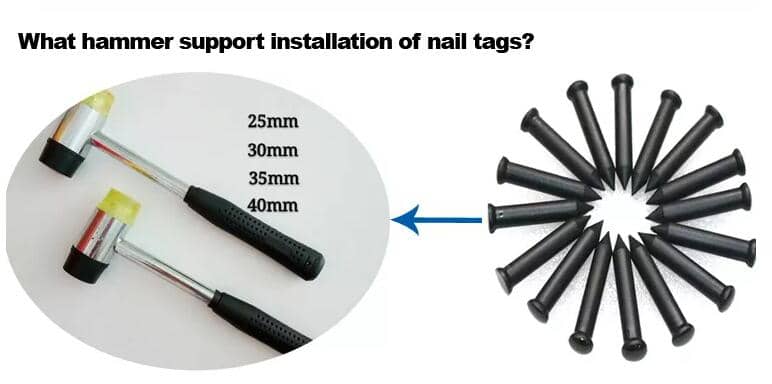

*Installation method:
*Embedded wood or the wall can be;
Specification
| Parameter |
| Chip |
UHF: Monza4QT/AlienH3;HF,LF |
| Antenna Process: |
Aluminum ETCH (AL10um) |

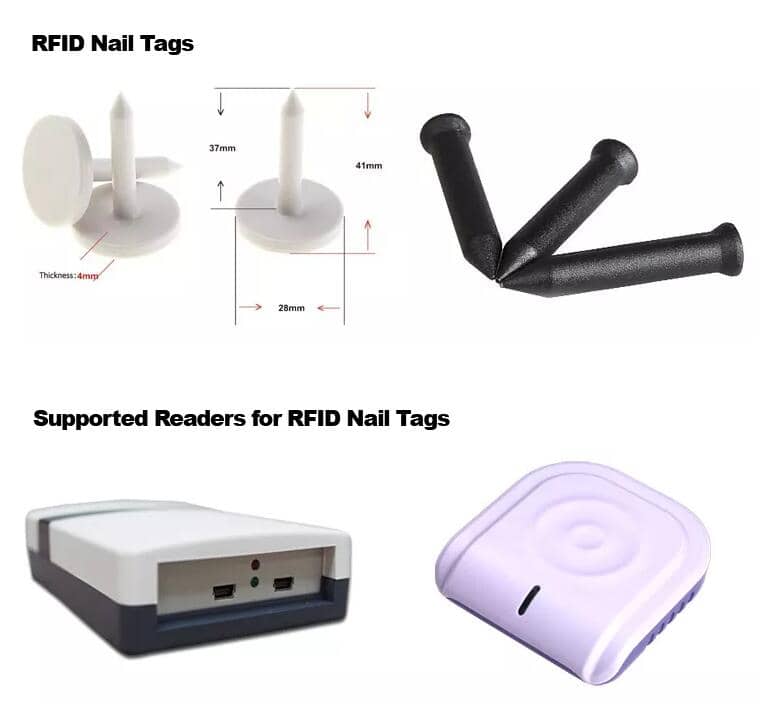

| Size |
40x10mm/41x22mm |
| Memory |
128bit,96bit,etc |
| Frequency |
860-960MHz |
| Substrate: |
ABS |
| Write Endurance |
≥100000 cycles |
| Read Range |
UHF:0-60cm(depends on the reader and antenna) |
| Aplication |
Tree/Wood management |
| Optional craft |
| Color |
Black, blue, or customized. |
| Carft |
Single color or Multi-color Printing,Barcode or QR Code printing,Data encoding,etc. |
| Package |
| Type |
Piece by piece ,can be customized. |
| Volume |
Carton: 50x45x35cm |
| Quantity |
100pcs/bag, 32bags/ctn |
| Weight |
7g/pcs |
