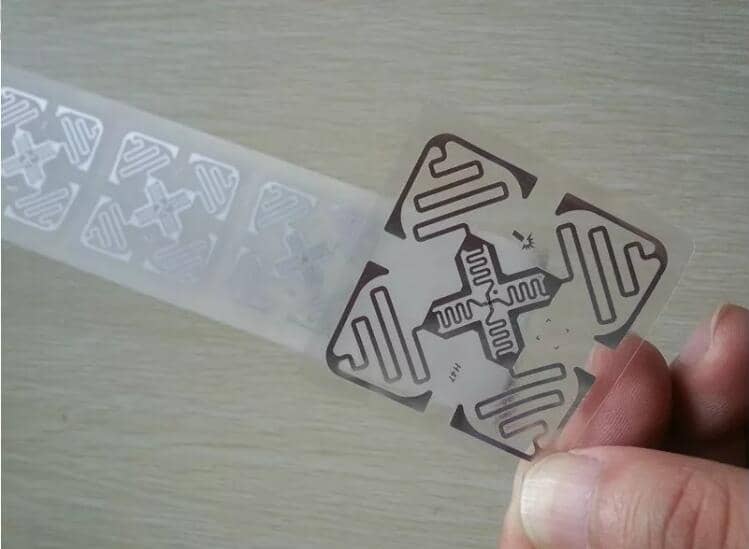

Long Range Passive UHF Dry Inlay

Categories

RFID Dry Inlays are described as “Dry” due to their lack of adhesive backing. Dry inlays attach an RFID microchip (IC) and antenna to a material or substrate called a web. These inlays look like they have been laminated and come standard with no adhesive.

INQUIRY NOW

Description
RFID Dry Inlays are described as “Dry” due to their lack of adhesive backing. Dry inlays attach an RFID microchip (IC) and antenna to a material or substrate called a web. These inlays look like they have been laminated and come standard with no adhesive.

Specification

Description of goods	Passive RFID UHF Dry Inlay
Size(mm)	50x50mm
Protocol Standard	EPC global UHF Class 1 Gen 2 (ISO/IEC 18000-6C)
RFID Chip	Impinj / Monza4QT
Antenna size	44x44mm Etching Aluminum
Tag Form Factor	Dry Inlay/wet inlay/White wet inlay(label)
Frequency	860-960MHZ(UHF)
EPC Memory Content	Unique, randomized number
Max Read Distance	Max 6 m (Based on RFID reader)
Working temperature	-10° to +60°C
EPC area	496 Bits( Read&write)
TID area	48 Bits( only read, can't be writen)
Unique TID area	48 Bits( only read, can't be writen)
Password Area	32 Bits( Read&write)
User area	128 BITS(READ&WRITE)
Application	File management,Assets management,Logistics management
Package	Packed by Roll

Application
