Different Layout Rfid Prelam Sheet

Categories

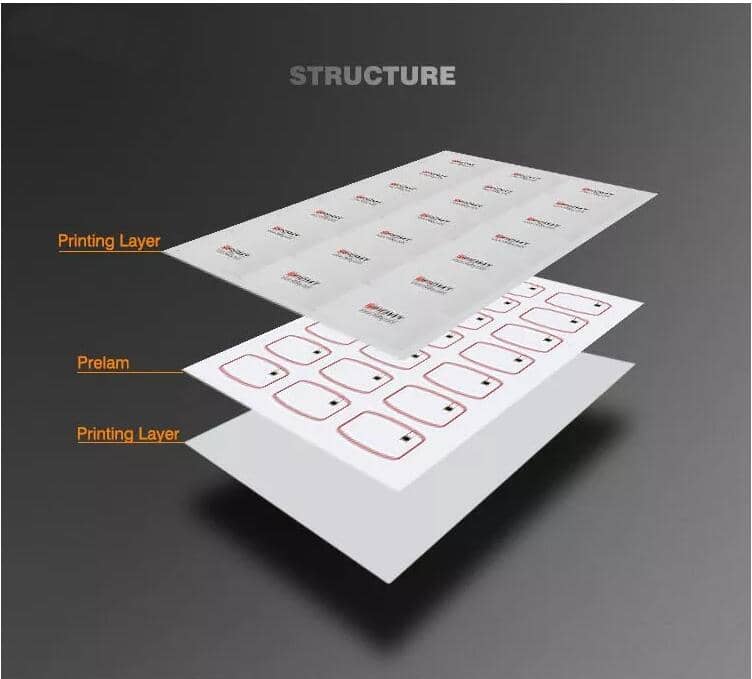

Our rfid prelam could incorporate pre-winding coil or ultrasonic embedding copper antenna, even FLIP chip etching antenna upon the customer's requirements. The prelam can be made of material PVC, PET etc. We could develop any size and shape of antenna th

INQUIRY NOW

Description
Our rfid prelam could incorporate pre-winding coil or ultrasonic embedding copper antenna, even FLIP chip etching antenna upon the customer's requirements. The prelam can be made of material PVC, PET etc. We could develop any size and shape of antenna that can be adapted to the specific requirements of the customer. Reliability, durability and prefect electrical performance, compliant with divers standards.

Specification

Product Parameter	Parameter Description
Material	PVC, Transparent PVC, PET etc.
Chips Available	Low frequency 125KHz chips, high frequency 13.56MHz chips, ultra-high frequency 860-960MHz chips, and hybrid chips
Protocols	ISO14443A, ISO15693, ISO11784/85, ISO18000-6C/EPC C1 etc
Antenna	Copper Antenna
Dimension	310468mm, 520420mm, 210*297mm, etc.
Working Temperature	-25℃ to +55℃
Application	Card producing

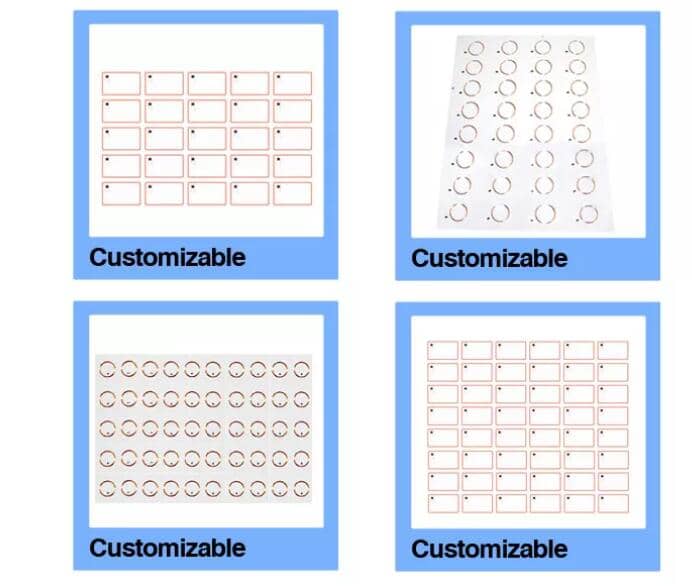

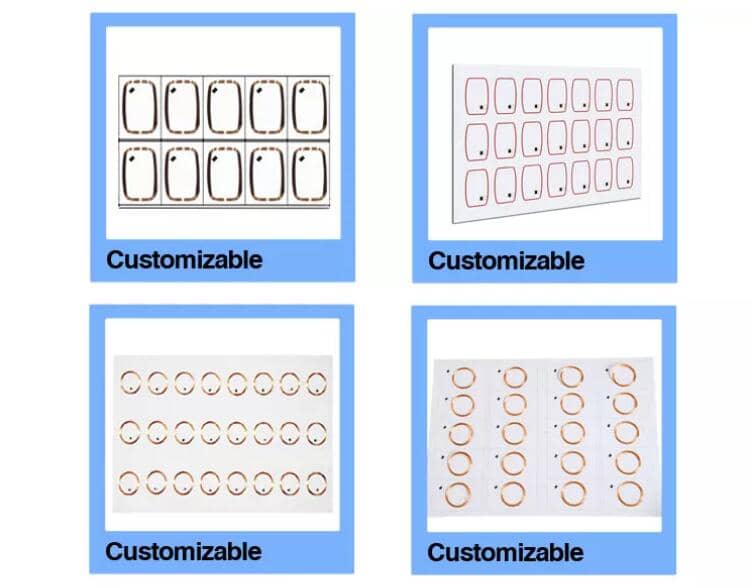

Available Layouts

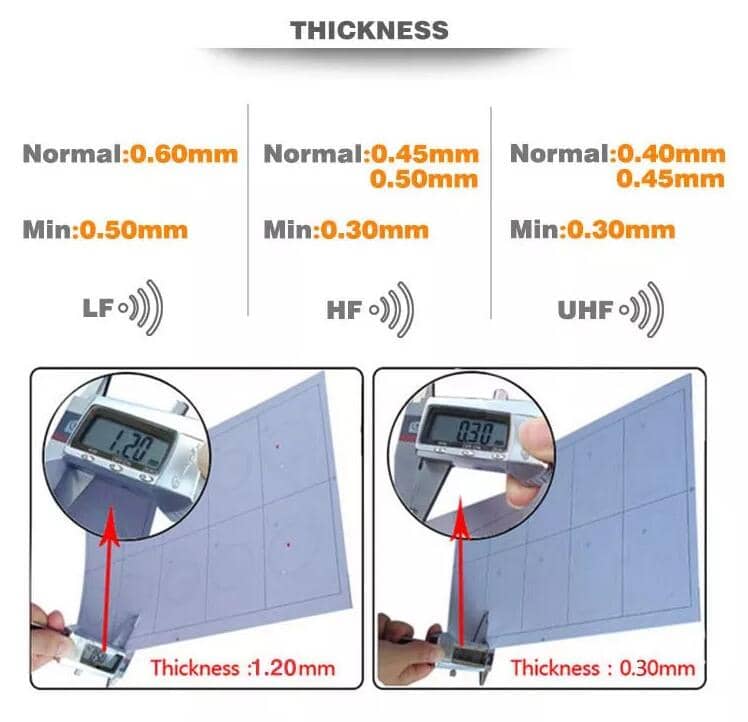

Thickness

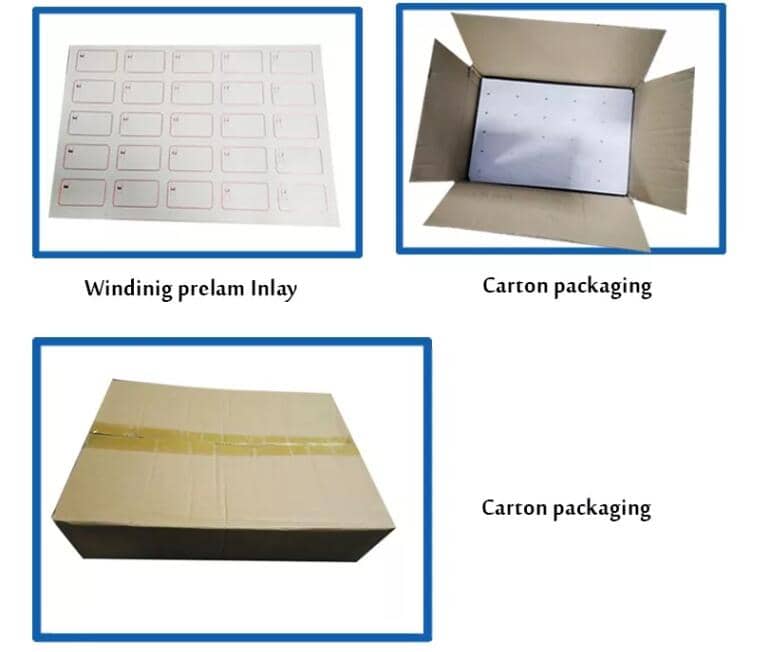

Package
