Durable RFID Worm Waste Bin Tag

Categories

RFID Bin Tag has excellent performance to waterproof, anti-oil, heat resistant, and anti-impact. RFID bin tag transponder can be easily installed into most trash cans in metal or DIN30745 plastic. The RFID trash bin is easy and effective helps waste manag

INQUIRY NOW

Description

RFID Bin Tag has excellent performance to waterproof, anti-oil, heat resistant, and anti-impact. RFID bin tag transponder can be easily installed into most trash cans in metal or DIN30745 plastic. The RFID trash bin is easy and effective helps waste management organizations achieve optimal data integrity. 125KHz, 134.2KHz (LF), 13.56MHz (HF) or 860-960MHz (UHF) are available.

RFID Bin Tag Key Features

Easy installation: Owing to its durable structure, the bin tag RFID tags can withstand the harsh environment.

Anti-counterfeit: Custom wrench screw design to prevent illegal disassembly.

Compatibility: RFID worm tags comply with international protocol and facilities.

Reliability: Waste bin RFID tag comply with main RFID frequencies, LF, HF, and UHF.

RFID BDE Tag Transponder Standards

Unique: DIN 30745

FDX-b BDE: EN 14803, DIN 30745

HDX: EN 14803, DIN 30745

HF: ISO 15693, ISO 18000-3, DIN 30745

UHF: UHF EPC Class1 Gen2, ISO 18000-6C, DIN 30745

RFID Bin Tag Transponder Specification

Material: Nylon+ epoxy filling

Size: Φ30mm x 15mm, hole diameter: 5.5mm

IP Class: IP67

Color: Black, yellow, red, blue, gray etc

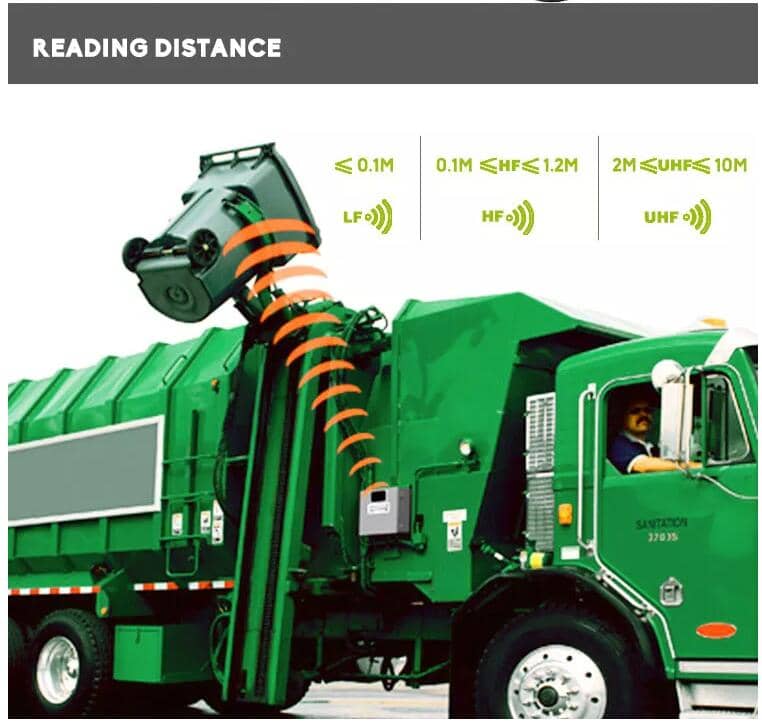

Read Distance: 5 ~ 10cm(LF); 5cm(HF); 2m ~ 3m(UHF)

Operating Temperature: -40°C ~ +120°C
